GoSaaS has developed multiple CAD adapters to connect with other cloud or on-premise systems to streamline the process of Engineering and Product Design. The SolidWorks adapter provides real-time, bi-directional integration and has the capability to push Part/Assemblies, Bill of Materials and Drawings. Our SolidWorks adapter also has the capability to pull the component information from the model as well from the drawing.
The SolidWorks Adapter is designed to be extensible. New systems and adapters can be implemented without any changes to the core framework.
The SolidWorks Adapter provides standards-based inbound and outbound interfaces to receive and send messages so it can work with all major integration cloud platforms.
The SolidWorks Adapter are quick to deploy and does not require complex configurations to make it work.
All system configurations are stored in a repository which can be updated via the web-based administration interface.
The SolidWorks Adapter maintains key information about message processing and tracks activities by audit log. The Management and Analytics module provides full system visibility using the web interface.
The SolidWorks Adapter's modular design enables integrations to scale up to the participating system’s data volume and frequency.

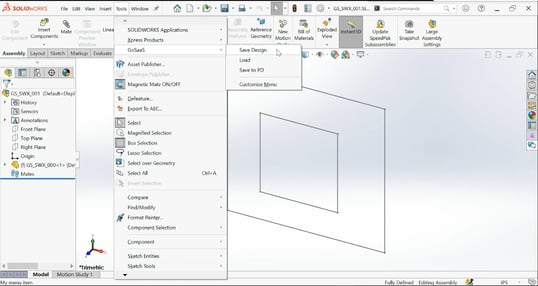

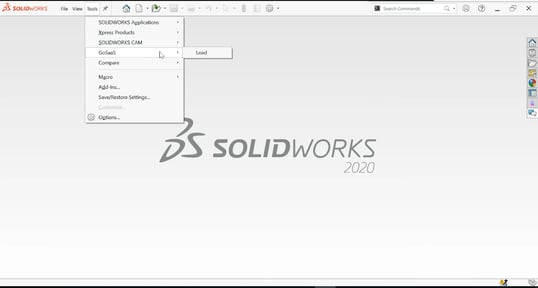

CAD Designer will click on GoSaaS > Load to pull the existing design.

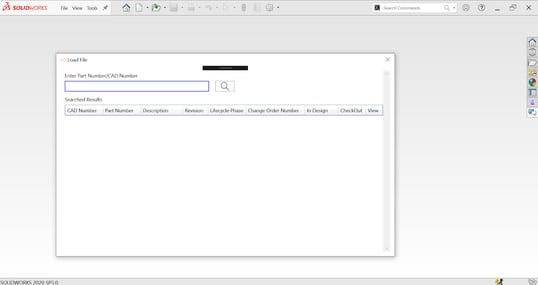

CAD Designer will enter Part Number > CAD Number to pull saved design object from GoSaaS Engineering Cloud Vault.

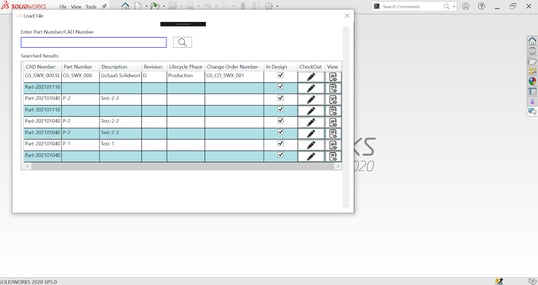

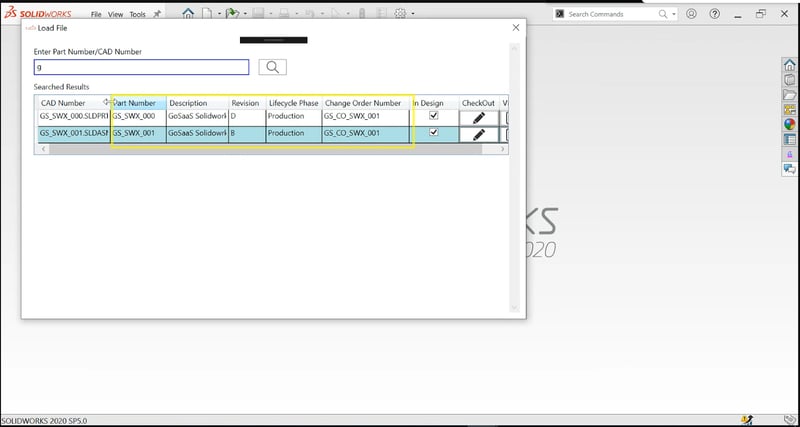

Search result will be displayed and the CAD Designer will click on View or Checkout the design object.

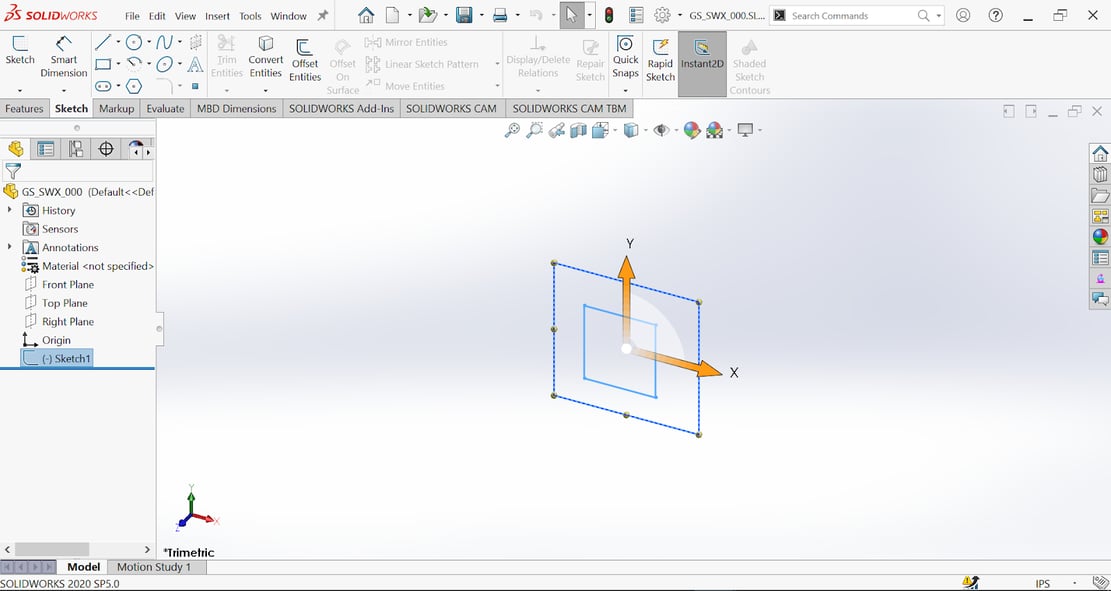

CAD Designer will open a CAD Part.

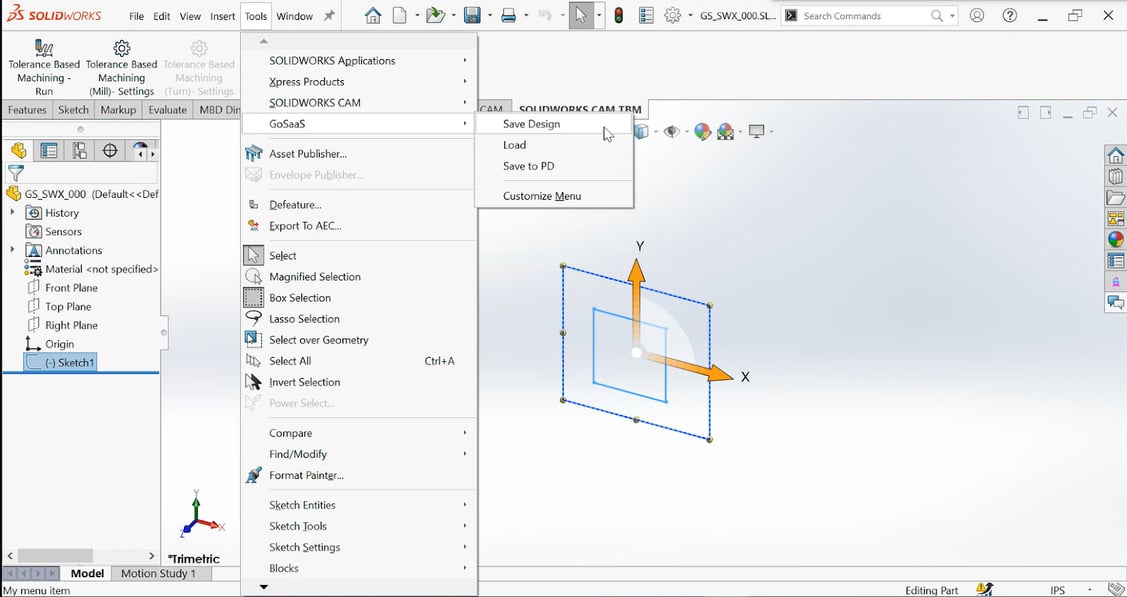

CAD Designer will click on Save Design to save in the GoSaaS Engineering Cloud Vault.

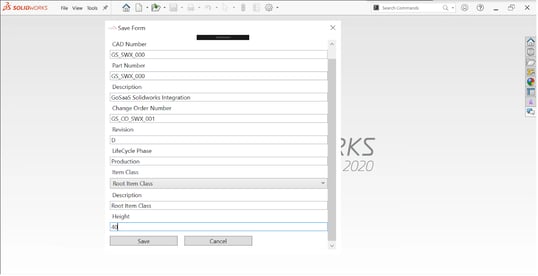

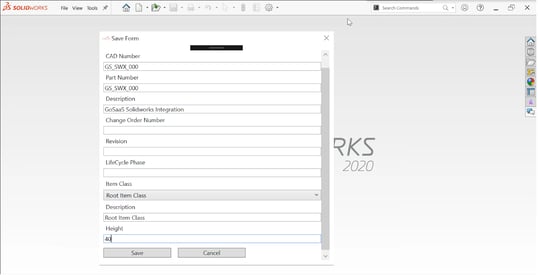

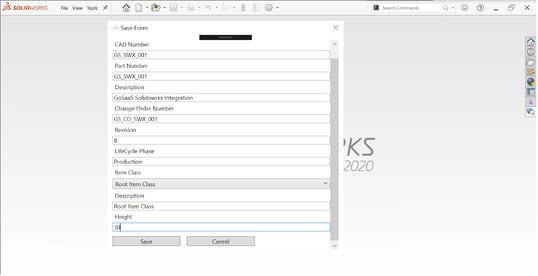

A model window will appear and the CAD Designer will provide the mandatory information and click Save. This will successfully save the meta-data and design file in GoSaaS Engineering Cloud Vault. Part Number can be placed manually and can also be left as blank to automatically generate the Part against the provided attributes in Oracle Cloud.
For an Assembly:

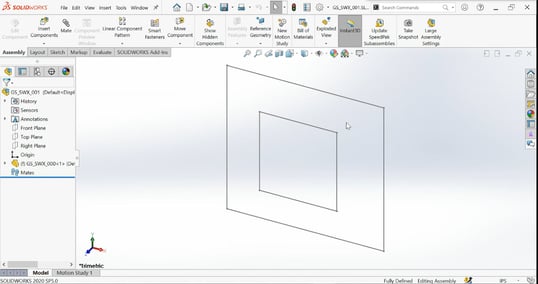

CAD Designer will open a CAD Assembly.
CAD Designer will click on Save Design to save Assembly in the GoSaaS Engineering Cloud Vault.

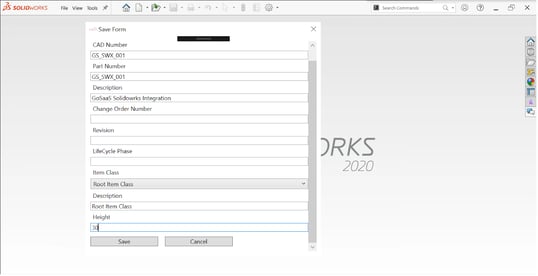

A model window will appear and CAD Designer will provide the mandatory information and click Save. This will successfully save the meta-data and design file in GoSaaS Engineering Cloud Vault. Part Number can be placed manually and can also be left as blank to automatically generate the Part against the provided attributes in Oracle Cloud.

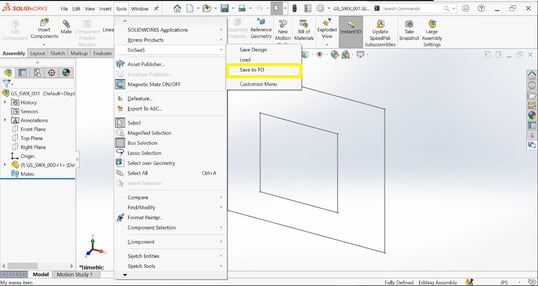

Once the design is finalized, CAD Designer will click on Save to PD to push the data to Oracle Cloud.

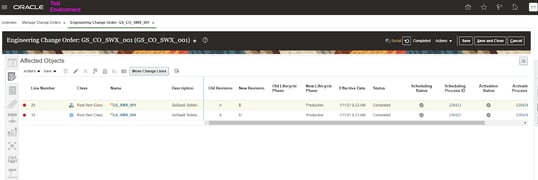

Both Part and Assembly will be placed on a change order as Affected Objects.

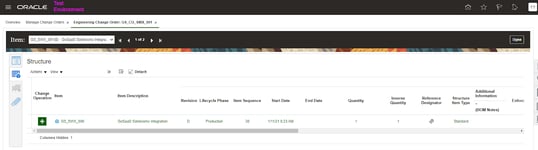

GS_SWX_000 will be added as redline structure on Assembly - GS_SWX_001.

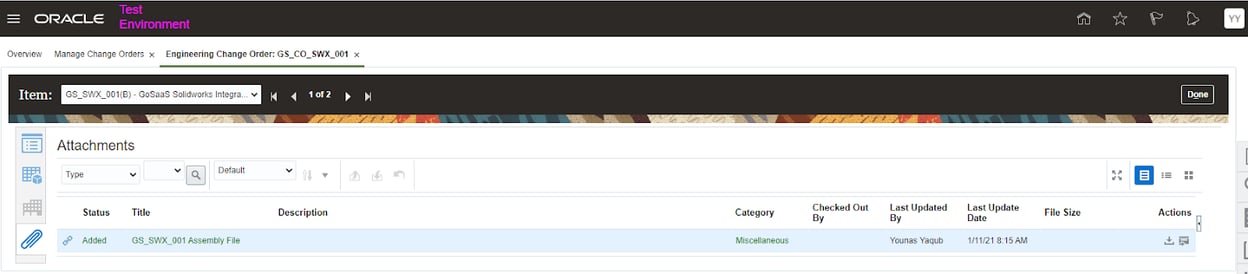

Attachment is synced on Assembly.

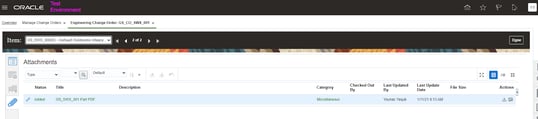

Attachment is synced on Part.
Once the Change order is completed Change Order Number, Lifecycle Phase, Revision will get updated on the objects.
Part Information with updated Change Order Number, Lifecycle Phase & Revision.
Part Information with updated Change Order Number, Lifecycle Phase & Revision.
